PRODUCTS
C.C.E. focuses on the provision of product marking and handling solutions for a wide variety of industry sectors and for all sizes of component, from the smallest to the largest. Our objective is to provide our customers with a complete service, from concept through implementation and ongoing support.
Focusing on Hot-Stamping, Pad-Printing and Screen-Printing marking, C.C.E. has been providing customers with a comprehensive product marking service.
Each marking requirement is uniquely different and the C.C.E. process begins by designing a solution, in partnership with the customer, which will work reliably and cost-effectively.
Forty five years of accumulated expertise contributes to a complete turnkey solution, comprising a tailored press, the correct tooling, consumables and, where necessary, an automated handling system to integrate with the customer's manufacturing process. Training, ongoing support and maintenance are all part of the C.C.E. package.
HOT-STAMPING MACHINES
Hot-Stamping is a dry printing method of lithography in which predried ink or foils are transferred to a surface at high temperatures. The non-polluting method has diversified since its rise to prominence in the 19th century to include a variety of colors and processes.
Check here our range of Hot-Stamping Machines

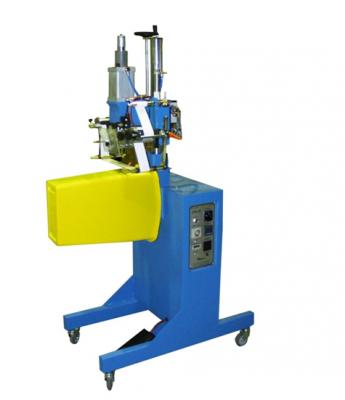

Nuno's GP 80
for Plastic Containers
Head Course (mm) 50
Output Compressed Air (Bar) 6/8
Hydraulic Output (Bar) -
Height (mm) 1700
Weight (Kg) 400
Electrical Tension (V~50 Hz) 220 + T
Power Absorbed (Kw) 1600
Stamping Pressure (Ton) 0,8
Blocks (mm) 80 x 110
Nuno's GP 115
for Plastic Containers
Head Course (mm) 80
Output Compressed Air (Bar) 6/8
Hydraulic Output (Bar) -
Height (mm) 2400
Weight (Kg) 450
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 2
Stamping Pressure (Ton) 1,2
Blocks (mm) 80 x 110
Nuno's GP 300
for Plastic Containers
Head Course (mm) 150
Output Compressed Air (Bar) 6/8
Hydraulic Output (Bar) 20/70
Height (mm) 2400
Weight (Kg) 1380
Electrical Tension (V~50 Hz) 3 x 380 N+T
Power Absorbed (Kw) 6
Stamping Pressure (Ton) 1/10
Blocks (mm) 300 x 350
Note: This machine can be manufacturated for numbering plastic containers. The numbering unit is alphanumeric, with characters of +/- 10 x 14 mm with manual and automatic function.

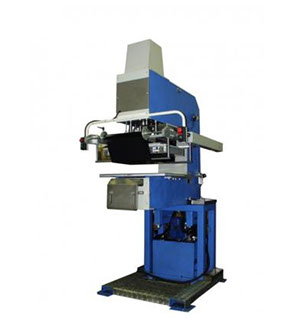

Nuno's GP 400
for Plastic Containers
Head Course (mm) 150
Output Compressed Air (Bar) 6/8
Hydraulic Output (Bar) 20/70
Height (mm) 2400
Weight (Kg) 1380
Electrical Tension (V~50 Hz) 3 x 380 N+T
Power Absorbed (Kw) 6
Stamping Pressure (Ton) 1/10
Blocks (mm) 400 x 400
(400 x 730)

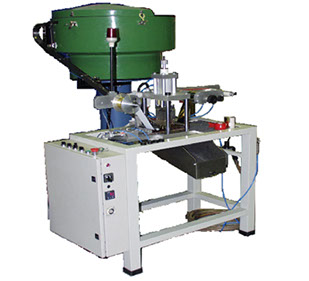

Nuno's GP 30-RT
for Synthetic T-Corks
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 100
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 0,7
Stamping Pressure (Ton) 0,3
Blocks (mm) -

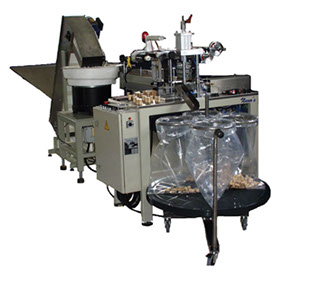

Nuno's GP 30-RTL
for Synthetic Cylindrical Corks
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 100
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 0,7
Maximum Production (H) +/- 2.400/3.600
Blocks (mm) -
Nuno's GP 30-RT
for Plastic Capsules
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 2400
Weight (Kg) 450
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 2
Stamping Pressure (Ton) 0,3
Production (H) 2.000/5.000
Nuno's GP 30-Roto
for High-Relief Plastic Capsules
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1300
Weight (Kg) 250
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 1,5
Stamping Pressure (Ton) 0,3
Production (H) 8.000/14.000

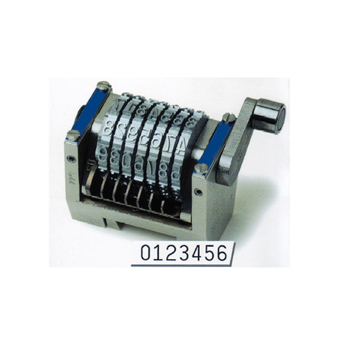

Nuno's Num
Number Unit for Appliance on Hot-Stamping Machines
Nuno's GP 10 NUM
Hot-Stamping Machine with Numbering Unit
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 100
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 0,7
Stamping Pressure (Ton) 0,3
Blocks (mm) -
Nuno's GP 10
Standard Hot-Stamping Machine
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 100
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 0,7
Stamping Pressure (Ton) 0,3
Blocks (mm) -
Nuno's GP 15
Standard Hot-Stamping Machine
Head Course (mm) 40
Output Compressed Air (Bar) 6/8
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 170
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 0,8
Stamping Pressure (Ton) 0,8
Blocks (mm) 110 x 80
Nuno's GP 20
Standard Hot-Stamping Machine
Head Course (mm) 40
Output Compressed Air (Bar) 6
Hydraulic Output (Bar) -
Height (mm) 1600
Weight (Kg) 270
Electrical Tension (V~50 Hz) 220
Power Absorbed (Kw) 1
Stamping Pressure (Ton) 1
Blocks (mm) 140 x 100
PAD-PRINTING MACHINES
Pad-Printing is a printing process that can transfer a 2-D image onto a 3-D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the cliché via a silicone pad onto a substrate.
Physical changes within the ink film both on the cliché and on the pad allow it to leave the etched image area in favor of adhering to the pad, and to subsequently release from the pad in favor of adhering to the substrate.
The unique properties of the silicone pad enable it to pick the image up from a flat plane and transfer it to a variety of surfaces, such as flat, cylindrical, spherical, compound angles, textures, concave, or convex surfaces.
Check here our range of Pad-Printing Machines
Nunos's OXA
Nuno's KYA
Nuno´s OXA
The Nuno's OXA is the entry model offering you all the essential parts to start pad printing. It’s the most economic version of a pad printer, available in different cup sizes. Add more options to customize it fully to your needs.
- Manual feeding
- Pneumatic driven
- 1-2 Ink cups
- Production up to 1200 cycl/h
For more informations please contact us... click here to contact us!
Nuno´s KYA
The Nuno's KYA is the fast & flexible version of a manual pad printing machine. Print up to 1800 pcs/h in 1 or 2 colours. Servo drive. 1 or 2 ink cups. Siemens compliance.
- Manual feeding
- Pneumatic driven
- 1-2 Ink cups
- Production up to 1800 cycl/h
For more informations please contact us... click here to contact us!
SCREEN-PRINTING MACHINES
Screen-Printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed.
Check here our range of Screen-Printing Machines
Nunos's SER 259
Nuno's SER P 120/150
Peripheral Decoration
Nuno´s SER 259
Plane Printing Area (mm) 259 x 350 to
600 x 1.100
Maximum Screen (mm) 650 x 1.200
Maximum Speed (prt/min) 18
Output Compressed Air 6 l/m | 6 bar
Electrical Tension (V~50 Hz) 40 W 220 V
For more informations please contact us... click here to contact us!
Nuno´s SER 120/150 SER P120 SER P150
Peripheral Printing Area (mm) 120 diam x 150 diam x
200 mm 200 mm
Plane Printing Area (mm) - 250 x 350
Maximum Screen (mm) 230 x 450 400 x 600
Maximum Speed (prt/min) 18 13
Output Compressed Air 6 l/m | 6 bar 6 l/m | 6 bar
Electrical Tension (V~50 Hz) 40 W 220 V 40 W 220 V
Dimensions 820x700x1450 780x830x1500
For more informations please contact us... click here to contact us!
.png)
OTHER MACHINES
C.C.E. manufactures complementary equipments such as slitter for Hot-Stamping foils and Surface Treatment machines.
Check here our range of Slitters
Nuno's SLT800
Table Model
Nuno's SLT800
Floor Model
Nuno´s SLT Table Model
Power 0,5 CV | 0,3 KW | 1,2 Amp
Cut (Length x Width) 800mm x 480mts
Electrical Tension (V~50 Hz) 380 (220V Optional)
Weight (kg) 83
Length (mm) 1.300
Height (mm) 1.200
For more informations please contact us... click here to contact us!
Nuno´s SLT Floor Model
Power 0,5 CV | 0,3 KW | 1,2 Amp
Cut (Length x Width) 800mm x 480mts
Electrical Tension (V~50 Hz) 380 (220V Optional)
Weight (kg) 83
Length (mm) 1.300
Height (mm) 1.200
For more informations please contact us... click here to contact us!
Nuno's Automatic SB
Surface Treatment Machine for Synthetic Corks
Nuno´s Automatic SB
Maximum Capacity 6.000 / 8.000 corks
Output Compressed Air (Bar) 6 Tube diam. 10
+/- 20 L of Air p/ Cycle
Electrical Tension (V~50 Hz) 220 AC / RNT / 15 A (3 x 2,5 mm2)
Elevators 1
Optional 2nd Out-put elevator + vibrator
with pre-selection counter
For more informations please contact us... click here to contact us!
